Shaking table which is also called table concentrator, it's effective in processing precious and base metal, rare metal and non-metallic minerals, widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. The range of effective separating particle size of shaking table is 2 to 0.022 mm.
1. Ultra-Smooth & Vibration-Reduced Operation
Symmetrical Eccentric Drive System + Suspended Design: These two features work together to significantly reduce harmful vertical vibration forces. Unlike traditional floor-mounted tables, there is no vertical jumping force.
The self-balanced vertical force component allows the table to be installed on building floors or brackets without bulky foundations.
Lift-type design minimizes friction, further reducing vibration and saving energy.
2. High Processing Capacity with Small Footprint

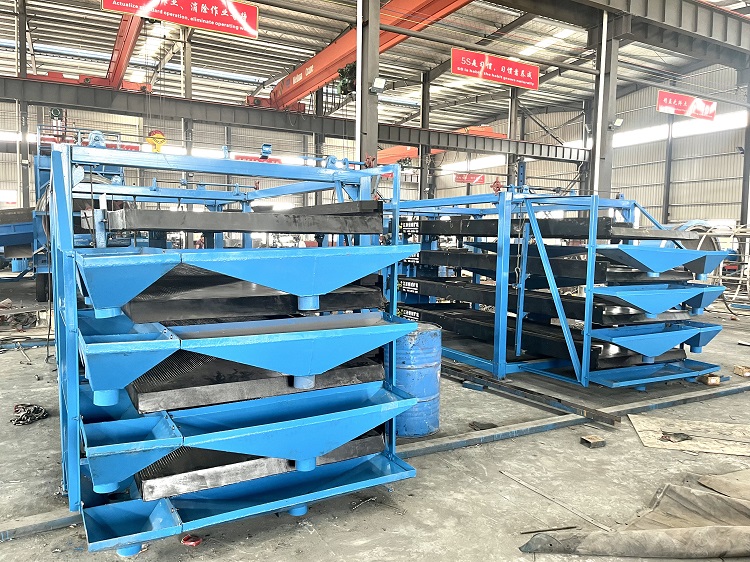

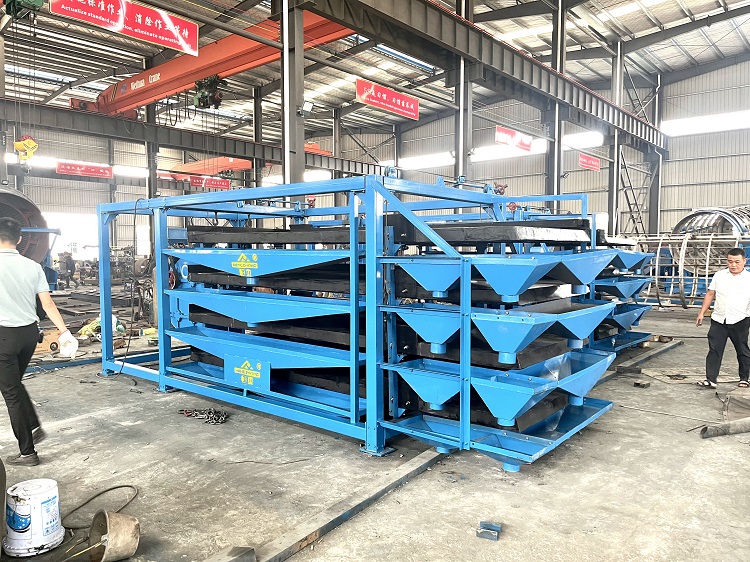

4 vertically stacked decks process four times the material in the same floor space as a single-layer table.
Saves up to 75% of floor space – ideal for sites with limited room.
Higher throughput per unit area compared to conventional single-layer tables.
3. Significant Energy Savings
Runs on just one 1.5-2.2 kW motor.
Consumes 65% less energy than traditional single-layer or multi-table setups.
4. Fast & Easy Installation – No Heavy Civil Work
Integrated distribution system and modular ore collector are built into the table.
No complicated foundation or bulky base required – the suspended design eliminates the need for heavy civil construction.
Cuts installation and commissioning time by up to 70% , dramatically shortening the production start-up period.
5. Durable, Low-Maintenance Construction
Fiberglass decks with a special wear-resistant layer: waterproof, anti-dry, corrosion-resistant, and non-deformable under temperatures from -50°C to +50°C.
Decks are mounted in a uniform frame layer by layer, making them easy to install, remove, and maintain.
The specific gravity of the fiberglass deck is 1/3 that of steel, while its strength reaches 70% of steel, resulting in a lightweight yet robust structure.
Less maintenance and long service life compared to traditional steel decks.
6. Adjustable Stroke & Frequency for Versatile Processing
Adjustable stroke: Simply replace different weight blocks to change the stroke length.
Variable frequency drive (VFD) : Easily change the shaking frequency to adapt to different materials, particle sizes, and characteristics.
7. Wide Application Range
Effective separation of particles from 2 mm down to 0.022 mm.
Suitable for precious metals (Gold, Silver), base metals (Copper, Lead, Zinc, Iron, Chrome, Manganese, Tin, Tungsten, etc.), rare metals (Tantalum, Niobium, Titanium, Zircon), and non-metallic minerals.
| Model | 4LYG | |||
| Deck type | Coarse ore Deck | Fine ore sand | Slime Deck | |
| Beneficiation area (m2) | 7.6 X 4 | 7.6 X 4 | 7.6 X 4 | |
| Maximum feeding size (mm) | 2 | 0.5 | 0.074 | |
| Capacity (t/h) | 2 | 2 | 2 | |
| Feeding density (%) | 20-30 | 18-25 | 15-20 | |
| Stroke (mm) | 8、10、12、15、18、20、22 | |||
| Frequency of stroke (r/min) | 270—360（variable-frequence） | |||
| Water consumption (t/h) | 0.7-1 | 0.4-0.7 | 0.4-0.7 | |
| Groove shape of deck | Available Rectangular, Saw-tooth, Triangle | |||
| Power (Kw) 1.5 | Dimension (mm) | 6330×2450×2660 | ||
